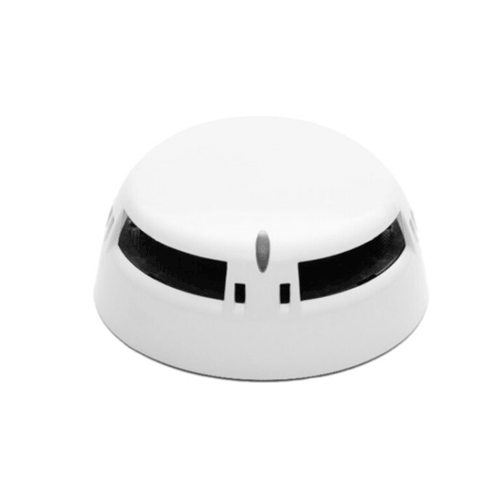

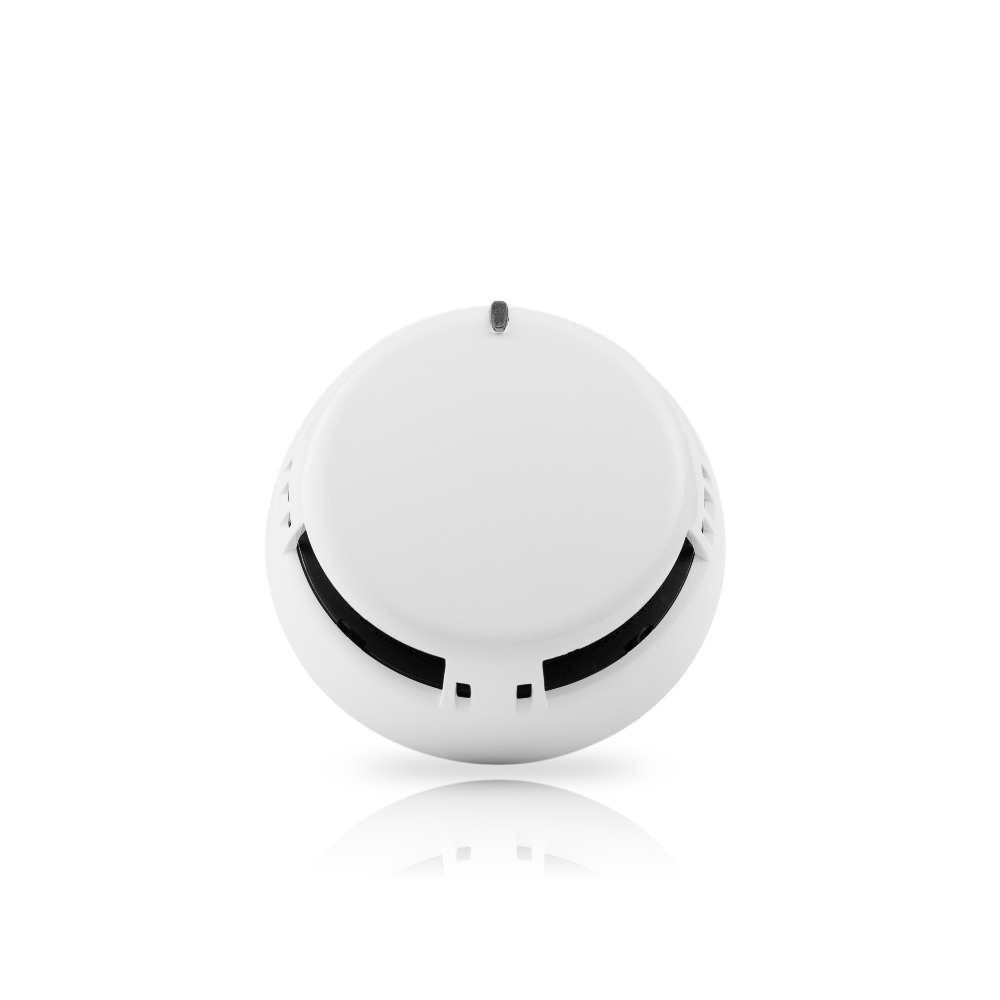

Opticalsmoke detector with built-in isolator ONEDETECTOR1

https://www.raytron.eu/web/image/product.template/12535/image_1920?unique=4f6f474
(0 review)

1.00 лв 1.0 BGN 1.00 лв  Exl. VAT

1.00 лв  Exl. VAT

Not Available For Sale

    This combination does not exist.

    This product is currently unavailable.

    Invalid email
    We'll notify you once the product is back in stock.
     Added to Wish Lis
    Contact Us



    Share

    Internal Reference: ONEDETECTOR1

    Option for ordering a color of choice for the sensor and the base. Minimum order quantity is 100 pcs.

    Description



    OneDetector1

    Dual optical detector with short circuit isolator

    Functional characteristics

    ✔ Dual optical technology – precise smoke detection + temperature analysis

    ✔ Immunity against false alarms – intelligent algorithms for maximum reliability

    ✔ 360° LED indicator with three colors:

    • Red – alarm
    • Yellow – damage
    • Green – localization

    ✔ Automatic isolator – protection against short circuit

    ✔ Flexible programming – through:

    • Digital programmer with a touch screen
    • Automatic addressing function for Teledata panels

    ✔ Secured mounting system:

    • Numbered bases for easy installation
    • Locking pin against unauthorized removal

    ✔ Optimized security – the highest level of protection and stability

    Advantages

    • Quick and accurate response to fire threats
    • Minimizing errors with advanced sensor technology
    •  Sustainable design for long-term use

    OneDetector1 – fire detection sensor, the intelligent solution for uncompromising fire safety!


    Technical data

    Тип датчик / Sensor type r:

    		 Двоен димнооптичен / Dual optical

    Съответствие / Compliance:

    		 EN54-7, EN54-17

    Максимална площ на покритие / Maximum coverage area:

    		 132 m2

    Максимална височина на инсталиране / Maximum installation height:

    		 ​  12 m

    Протокол / Protocol :

    ONEPROTOCOL

    Устройства за един контур / Loop :

    До 240 устройства с дължина на трасето до 5 км  (подлежи на изчисления на натоварване и използване на подходящи кабели)  /Up to 240 devices along 5 Km of cable ( subject to load calculations and use of appropriate cables)

    Диапазон на захранващо напрежение  / Supply voltage range

    18 ~ 27V

    Консумация в режим на готовност / Stand by consumption

    190μA

    Ток при аларма / Alarm curren:

    6 mA (LED on)

    Максимална консумация на дистанционния изход / Remote output max current:

    15 mA

    Височина със стандартна основа / Height with standard base

    48 mm

    Диаметър / Diameter:

    92 mm​

    Тегло със стандартна основа / Weight with standard base:

    120 g

    Работна температура / Operating Temperature [°C]

    -30°C ~ +70°C

    Влажност / Humidity:

    95% RH (без кондензация)  / 95% RH (without condensation)

    Стандартна основа / Standard base:

    ONEBASE

    Основа със сирена (EN54-3) / Base with siren:

    ONEBASES

    Основа със сирена и светлинна индикация (EN54-3, EN54-23 / 1Base with siren and flash (EN54-3, EN54-23):

    ONEBASELPG



    In accordance with standards EN 54-7:2018; EN 54-17:2005, EN 54-17:2005/AC:2007 Download
