Option for ordering a color of choice for the sensor and the base. Minimum order quantity is 100 pcs.

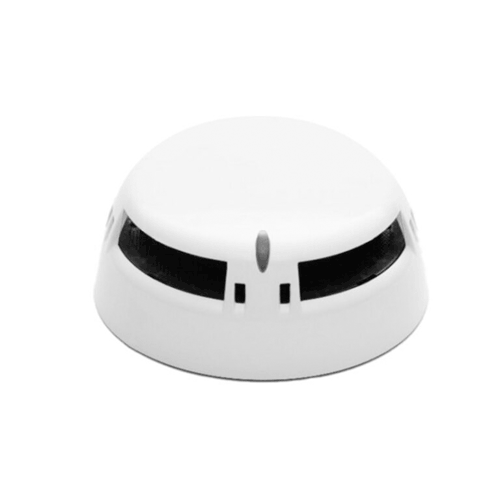

OneDetector – Intelligent combined fire alarm sensor
Key features:
- Dual technology – Combination of optical and thermal sensors for maximum accuracy and security;
- In accordance with three standards – EN54-5, EN54-7 и EN54-29 (the first certified detector of this class);
- Protection against false alarms – Intelligent algorithms for filtering false triggers;
- 360° LED indicator – Visual signaling (red – alarm, yellow – fault, green – normal);
- Built-in short circuit isolator – Automatically isolates a short circuit while maintaining the functionality of the other detectors in the network;
- Easy addressing – addressing via ONEPROGRAMMER with a touchscreen or Teledata panel;
- Vandal-resistant protection – Locking pin and numbered base for increased security
Advantages
- High reliability – Dual technology for rapid fire detection and immediate response;
- Easy management – Quick addressing and installation;
- Suitable for various environments – Effective in offices, warehouses, industrial sites, hotels, etc..
OneDetector – fire detection sensor, the innovative solution for modern fire safety!
Тип датчик / Sensor type r: |
Комбиниран оптичен и термодиференциален. Скорост на нарастване при 58°C / Dual Optical and Rate of Rise at 58°C |
Съответствие / Compliance: |
EN54-5, EN54-7, EN54-17 |
Максимална площ на покритие / Maximum coverage area: |
132 m2 |
Максимална височина на инсталиране
/ Maximum installation height: |
12 m |
Протокол / Protocol : | ONEPROTOCOL |
Устройства за един контур / Loop : | До 240 устройства с дължина на трасето до 5 км (подлежи на изчисления на натоварване и използване на подходящи кабели) /Up to 240 devices along 5 Km of cable ( subject to load calculations and use of appropriate cables) |
Диапазон на захранващо напрежение / Supply voltage range | 18 ~ 27V |
Консумация в режим на готовност / Stand by consumption | 190μA |
Ток при аларма / Alarm curren: | 6 mA (LED on) |
Максимална консумация на дистанционния изход / Remote output max current: | 15 mA |
Височина със стандартна основа / Height with standard base | 48 mm |
Диаметър / Diameter: | 92 mm |
Тегло със стандартна основа / Weight with standard base: | 120 g |
Работна температура / Operating Temperature [°C] | -30°C ~ +70°C |
Влажност
/ Humidity: |
95% RH (без кондензация) / 95% RH (without condensation) |
Стандартна основа / Standard base: | ONEBASE |
Основа със сирена (EN54-3) / Base with siren: | ONEBASES |
Основа със сирена и светлинна индикация (EN54-3, EN54-23 / 1Base with siren and flash (EN54-3, EN54-23): | ONEBASELPG |
In accordance with standards EN 54-7:2018; EN 54-17:2005, EN 54-17:2005/AC:2007 Свали
